Description
The ZO-DPMT Pressure Measurement Trainer is an advanced instructional platform developed for practical experimentation in pressure sensing and measurement. It enables users to study the relationship between applied pressure and corresponding electrical signals, analyze sensor behavior, and perform calibration exercises.

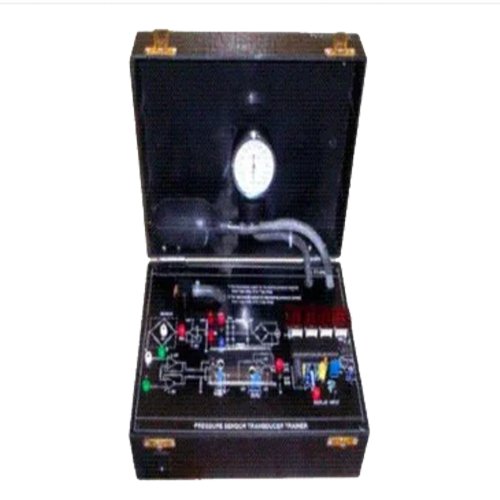

Equipped with a built-in pressure generator with dial display, a precision pressure cell, and a 3.5-digit Digital Panel Meter (DPM), the system provides accurate, stable, and user-friendly measurement capability. Multiple banana socket test points allow convenient signal monitoring and interconnection during experiments.
Housed in a durable ABS plastic cabinet with a protective cover, the trainer is ideal for technical institutes, engineering laboratories, and vocational training centers.
Key Features
- Enables detailed study of pressure measurement principles
- Built-in pressure generator with dial display for manual pressure application
- High-quality pressure cell for accurate sensing
- 3.5-digit DPM for clear pressure indication
- Multiple banana socket test points for observing and measuring internal signals
- Regulated built-in power supply ensuring stable operation
- Operates on 220V AC ±10%, 50Hz mains supply
- Enclosed in a robust and attractive ABS plastic case for protection and portability
- Ideal for laboratory demonstrations, student training, and sensor calibration exercises

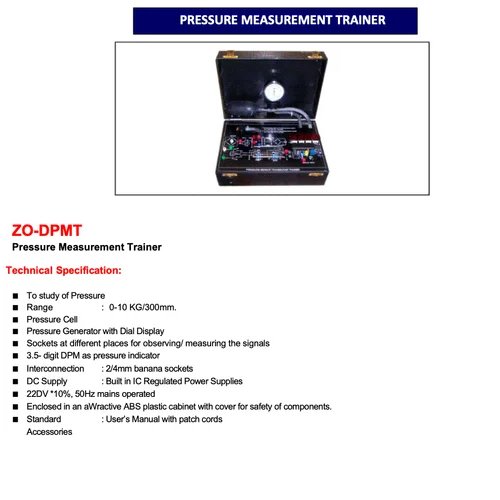

Technical Specifications
- Study Module: Pressure measurement & sensor characteristics
- Pressure Range: 0–10 kg / 300 mm
- Sensors Included: Pressure cell
- Display: 3.5-digit Digital Panel Meter
- Interconnections: 2 mm / 4 mm banana sockets
- Power Supply: Built-in IC-regulated DC supply
- Mains Input: 220V ±10%, 50Hz
- Construction: ABS plastic cabinet with protective cover
- Standard Accessories: User manual, patch cords
Additional Information:
- Production Capacity: 25
