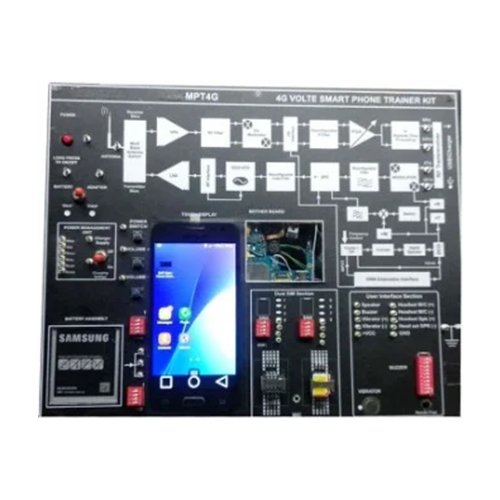

Mobile Phone Trainer With Gsm

Description

Zodiac Overseas presents an advanced 4G VoLTE Smart Phone Trainer Kit designed for hands-on training and real-time learning of modern mobile phone technology. Built to provide in-depth understanding of smartphone hardware and communication standards, this trainer is ideal for engineering colleges, technical institutes, and mobile repair training centers.

✅ Product Highlights:

• Real-time study of a fully functional 4G Dual SIM smartphone system.
• Exposes internal modules like microphone, speaker, vibrator, buzzer, hands-free port, camera, and SIM card interface.
• On-board test points for signal monitoring and voltage measurements.
• Solder-free fault insertion for easy troubleshooting practice.
• Complete block diagram of smartphone architecture printed on the board.

📘 Scope of Learning:

• Power Management System
• Battery & Charging Circuitry
• User Interface Components (MIC, Speaker, Vibrator, etc.)
• Dual SIM Detection & Communication Flow
• Touch Screen Functionality
• Operating Modes: Sleep, Alarm, Dead, and Partially On
• Fault Simulation in All Major Sections

⚙️ Technical Specifications:

• Supported Networks: 4G VoLTE (Cat 4), 3G (UMTS/HSPA+), 2G (GSM/EDGE)
• Bands Supported: GSM (850/900/1800/1900 MHz), UMTS (850/900/1900/2100 MHz), LTE (Bands 1/3/5/7/8/20/38/40/41)
• Processor: Qualcomm Octa-Core, 1.4 GHz
• Operating System: Android
• Display: 5” Full HD, 1920×1080 resolution (441 ppi)
• Storage: 16 GB internal, 1 GB RAM, expandable via MicroSD
• Connectivity: Wi-Fi (2.4 & 5GHz), Bluetooth 4.2, GPS, A-GPS, GLONASS
• Cameras:
  • Rear: 13 MP with PDAF & 1080p HD recording
  • Front: 5 MP with Display Flash
• Audio/Ports: 3.5 mm jack, Micro USB, Dual SIM, Wi-Fi Hotspot

🧰 Ideal For:

• Technical Training Institutes
• Mobile Servicing Labs
• Electronics Engineering Colleges
• Vocational Training Programs
