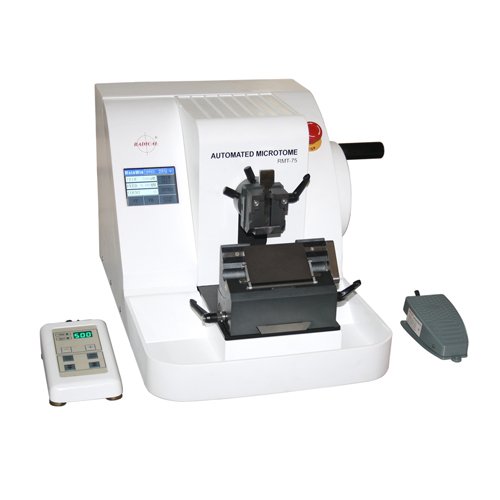

Fully Automatic Rotary Microtome

Description

Here’s a clean, professional rewrite with improved clarity and without the model name:

A fully automatic rotary microtome designed for high reliability, precision, and operator comfort. Its stable construction and advanced engineering make it suitable for paraffin as well as hard tissue sectioning in biological, medical, and industrial laboratories. The dual-mode design allows both motorized and manual operation, ensuring consistent, high-quality results across applications.

Key Features

• Dual operation: automatic and manual sectioning
• Precision motor drive system for accurate, quiet, and reliable performance
• Touchscreen interface displaying section thickness, trimming settings, counters, mode, speed, and stroke
• Specimen retraction function to reduce friction and extend blade life
• Universal cassette clamp and specimen holder for secure and accurate positioning
• Adjustable blade carrier compatible with high- and low-profile disposable blades or steel knives
• Lockable handwheel for enhanced safety during operation
• Emergency stop, overload protection, safety alarm, and sleep mode
• Foot switch and remote control panel for convenient operation
• Integrated, removable waste tray for easy cleaning
• Specimen orientation with multi-axis adjustment and full rotation
• Protective guard for safe handling

Technical Specifications

• Section thickness range: 0–100 µm
  • 0–10 µm in 1 µm steps
  • 10–20 µm in 2 µm steps
  • 20–50 µm in 5 µm steps
  • 50–100 µm in 10 µm steps
• Trimming thickness range: 5–500 µm
  • 10–100 µm in 10 µm steps
  • 100–200 µm in 20 µm steps
  • 200–500 µm in 50 µm steps
• Horizontal specimen stroke: 28 mm
• Vertical specimen stroke: 60 mm (optional 70 mm)
• Specimen retraction: 12 µm
• Cutting speed: up to 300 mm/s
• Feed speed: 1250 / 2000 µm/s
• Precision error: ±5%
• Maximum section size: 50 × 45 mm
• Dimensions: 520 × 450 × 300 mm
• Net weight: approx. 30 kg
• Power supply: AC 110–220V, 50/60 Hz
