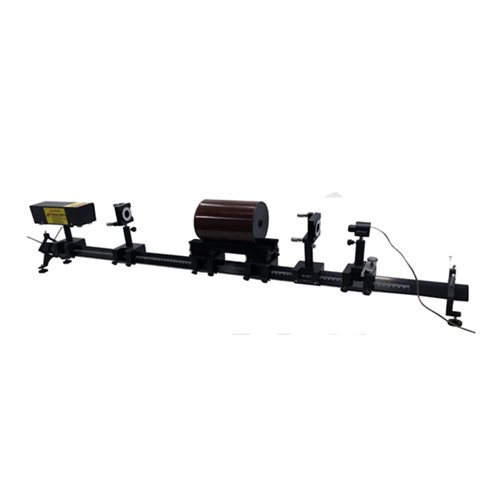

Faraday Effect Apparatus

Faraday Effect Apparatus with He-Ne Laser | Zodiac OverseasProduct Description:

The Faraday Effect Apparatus is a precision-engineered experimental setup designed to study the Magneto-Optic Effect and to determine the Verdet Constant of a material for a given wavelength of light. This integrated and easy-to-use system helps students and researchers understand the fundamental concept of how the plane of polarized light rotates when it passes through a medium placed in a magnetic field.

The apparatus is suitable for advanced physics laboratories in universities, engineering colleges, and research centers.

Key Features:

• Designed for determination of Verdet Constant
• High-quality optical rail system (1000 mm, anodized aluminum) for stable alignment
• He-Ne Red Laser source for precise optical measurements
• Adjustable polarizer rotors with mounts for accurate polarization control
• Electromagnet with winding (15 cm) for strong and uniform magnetic fields
• Supplied with glass rod samples for experiments
• Screen with mount for observation of light rotation
• Power Supply: 0–6A current regulated unit

Supplied Components:

1. Optical Rail (1000 mm, anodized aluminum) – 1 Pc
2. Laser Mount – 1 Pc
3. Polarizer Rotors with Mounts – 2 Pc
4. Electromagnet with Mount (Aluminum winding, 15 cm length) – 1 Pc
5. Glass Rod Samples (15 cm, thickness 12 mm & 16 mm) – 1 Pc
6. Regulated Power Supply (0–6A) – 1 Pc
7. He-Ne Laser (Red) – 1 Pc
8. Screen with Mount – 1 Pc

Applications:

• Study of Magneto-Optic Effect (Faraday Effect)
• Determination of Verdet Constant for different materials
• Research in optics, electromagnetism, and material science
• Educational demonstrations in colleges and universities

Advantages:

• Easy to assemble and operate
• Accurate, stable, and durable design
• Enhances conceptual understanding of optical rotation in magnetic fields
• Trusted in academic and research laboratories

Made in India | Precision Laboratory Instrument | Reliable & Durable
